Other analysis available

From the results obtained with cg/wgMLST analysis, you can proceed to further analysis.

Subgraph

The subgraph command performs a simple hierarchical clustering to group strains with a distance below the threshold.

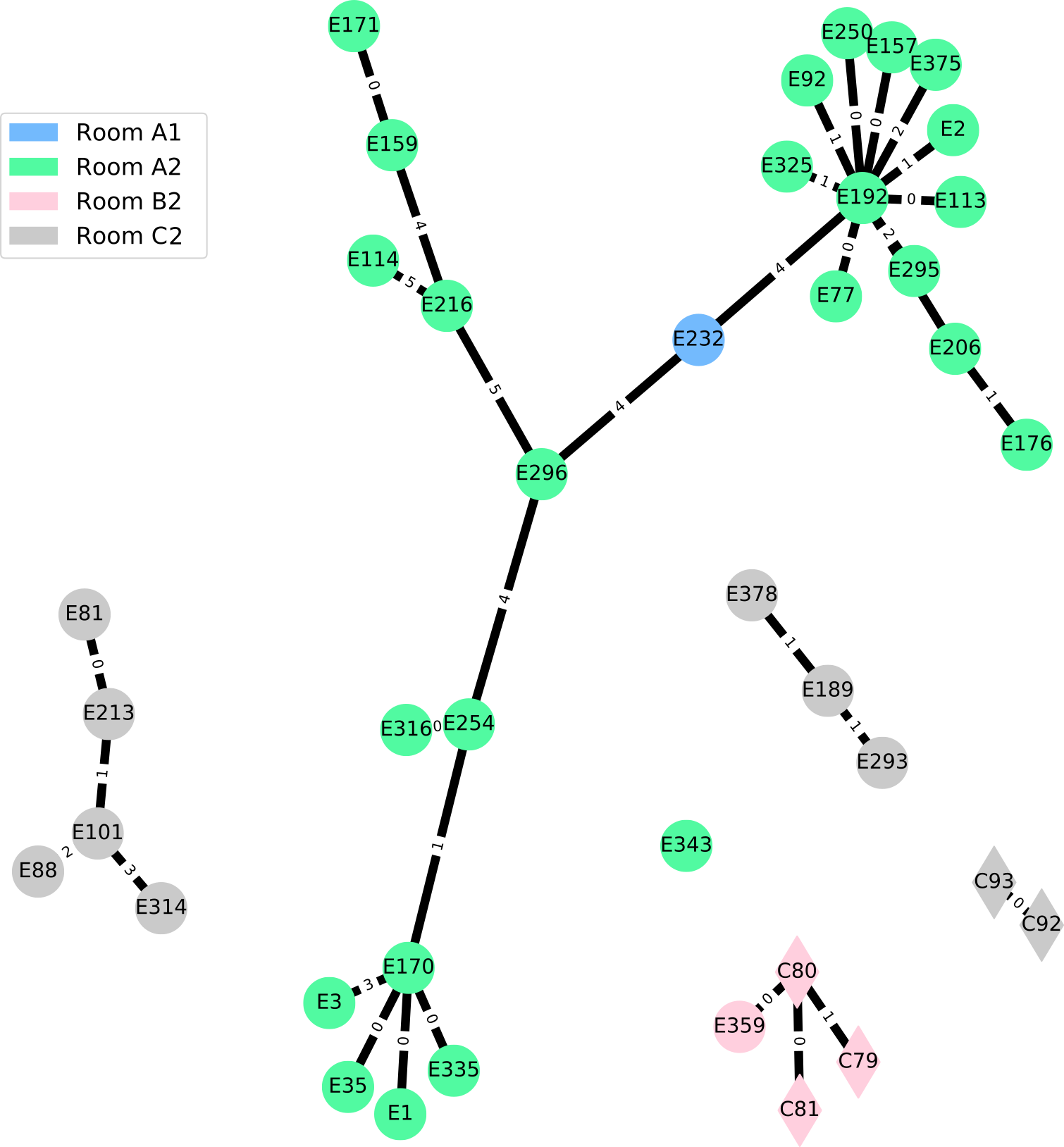

Subgraph representation

MST representation of subgraph analysis at a threshold of 10.

You need:

DISTANCE

The distance matrix obtained with distance command.

wgMLST subgraph -h
Usage: wgMLST subgraph [OPTIONS] DISTANCE

Searches group of strains at a DISTANCE threshold.

Options:
-o, --output FILENAME             Output group files (default:stdout).
-t, --threshold INTEGER           Minimum distance to conserve for extraction
                                  of group (default:50).
-e, --export [list|count|group]   Export type (default:list).

Recombination

The recombination command determines the number of different positions in the multiple alignment. You can use the result to define a threshold and the final list of genes without potential recombination.

#Gene   Mutation  Lenght  mutation per 100 base
PA0001     1       1545    0.064
PA0002     1       1104    0.090
PA0004     1       2421    0.041
PA0010     1       552     0.181
PA0011     0       888     0.0
PA0022     1       558     0.179
PA0038     1       216     0.462
PA0062     1       417     0.239
PA0065     1       666     0.150
...

You need:

GENES

List of genes used for export MSA and obtained with gene command.

ALIGNMENT

The Multiple Sequence Alignment obtained with msa command.

wgMLST recombination -h
Usage: wgMLST recombination [OPTIONS] GENES ALIGNMENT

Searches potential gene recombinations from wgMLST database export.

Options:
-o, --output FILENAME  Output number of variations by genes
                       (default:stdout).

Warning

The algorithm is designed to find recombination on closed strains and could not work correctly on more diverse ST.
